7MHz DDS Sweep Function Generator

BK 4013B 7 MHz DDS Function Generators

Analogue Function Generator
12 MHz


Max Frequency (Hz)


Add to compare

Documentation & Downloads


BK4013B is a 7 MHz DDS Function Generator.

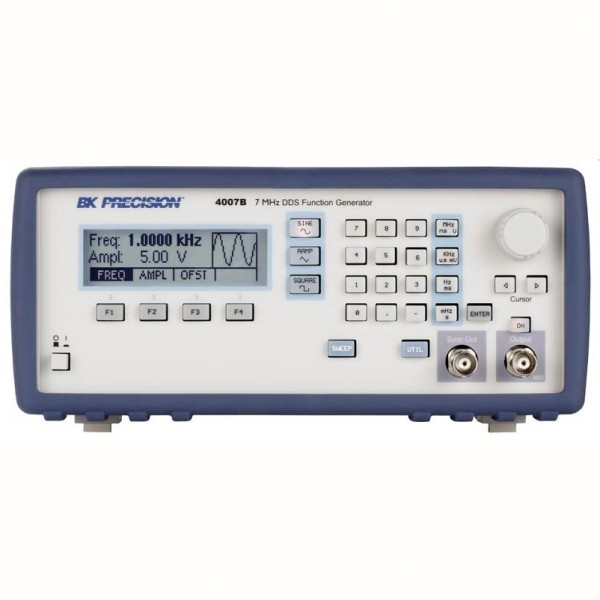

Models 4007B and 4013B are versatile sweep function generators utilizing an advanced direct digital synthesis (DDS) design. These instruments generate sine, square, and triangle waveforms with high signal precision and stability.

Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into open circuit, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

Features of the BK4013B

  • Sine, square, and triangle/ramp waveform generation
  • Linear and logarithmic sweep
  • Adjustable duty cycle
  • Adjustable DC offset
  • Store and recall up to 9 instrument settings
  • Output On/Off button
  • Overvoltage, overcurrent, and short circuit protection on main output
