Description
The BK4064 Dual Channel Function/Arbitrary Waveform Generator is capable of generating stable and precise sine, square, triangle, pulse and arbitrary waveforms. With an easy-to-read colour display and intuitive user interface with numeric keypad,this instrument offers plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 500 MSa/s arbitrary waveform generator.
Features of the BK4064
-
14-bit, 500 MSa/s, 512k point (Ch2 only) arbitrary waveform generator
-
Two independent channels with one-button synchronization
-
Generate sine waves up to 120 MHz
-
Generate square waves up to 50 MHz
-
Large 4.3-inch LCD colour display
-
Linear and logarithmic sweep
-
AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
-
Variable DC offset
-
Adjustable duty cycle
-
Internal/external triggering
-
Gate and burst mode
-
36 built-in predefined arbitrary waveforms
-
Store/recall up to 10 instrument settings and
-
32 user-defined arbitrary waveforms (8 x 512 kpts, 24 x 16 kpts)
-
Built-in counter
-

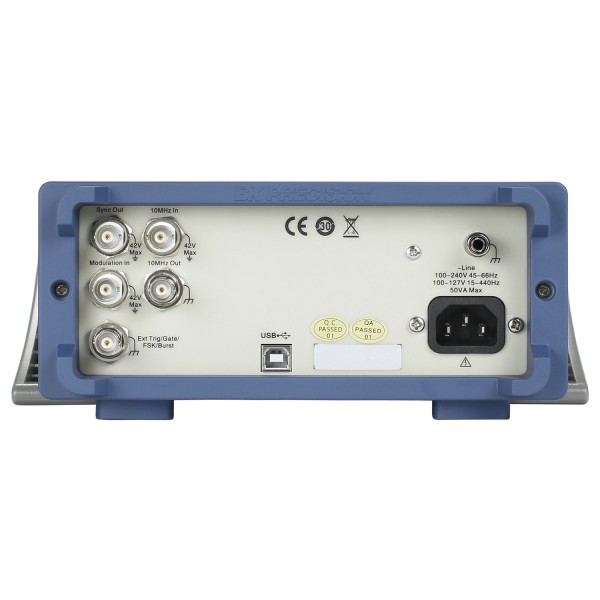

USB device port (USBTMC-compliant) and front panel USB host port
-
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
-
Arbitrary waveform editing software included
-
Short circuit output protection
- LabVIEW™ drivers available
