BK9183

£821.00 (£985.20 incl. VAT)

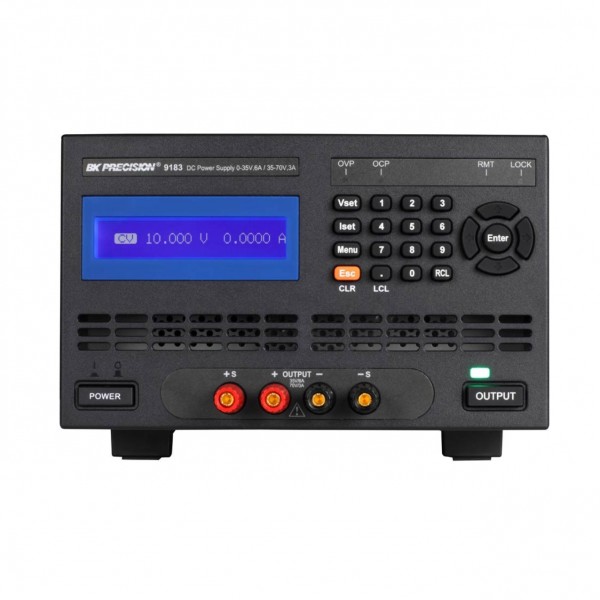

BK9183 dual range programmable DC power supply 210 W 0-35 V, 0-6 A / 0-70 V, 0-3 A

Out of stock

Description

BK9183 dual range programmable DC power supply 210 W 0-35 V, 0-6 A / 0-70 V, 0-3 A

The 9170/9180 series programmable DC power supplies deliver clean, stable and precise output power due to the supplies exceptionally low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics.

These power supplies offer SCPI IEEE488.2 compliant USB (standard), RS232, RS485, GPIB and LAN interfaces, combined with front and rear panel output and remote sense terminals to facilitate test system development and integration. The LAN interface includes a built-in web server that allows users to configure, control, or monitor basic power supply settings.

In addition to a full numerical keypad for convenient data entry, this series also provides unique features not typically found in comparable power sources, such as LED test modes, modular interface card slots, automatic range selection, and an optional 8-bit bidirectional digital I/O interface.

Features

  • This is the UK spec 220VAC version with UK power lead
  • Single and dual output models with up to 210W output power
  • Exceptionally low ripple and noise

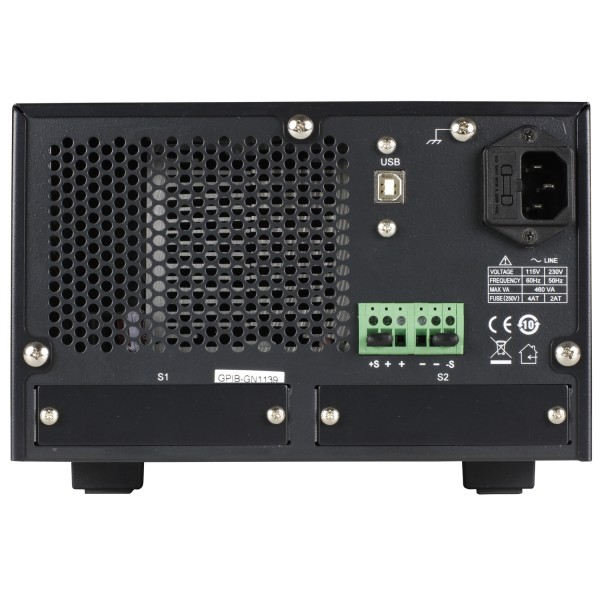

  • Front and rear panel output
  • List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
  • Overvoltage/overcurrent/overtemperature protection (OVP/OCP/OTP) and key-lock function
  • Fast transient response time of < 50 us for most models
  • Programmable voltage and current slew rates
  • Standard USB interface
  • 4 optional types of modular interface cards add LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232 functionality
  • LabVIEW (TM) drivers available
Model Guide
Model 9171 9172 9173 9174 9181 9182 9183 9184 9185
Voltage
Ranges
10V,
20V
35V,
70V
10V,
20V
35V,
70V
18V,
36V
10V,
20V
35V,
70V
100V,
200V
400V,
600V
Max
Current
10A,
5A
3A,
1.5A
10A,
5A
3A,
1.5A
8A,
4A
20A,
10A
6A,
3A
2A,
1A
0.5A,
0.35A
Number
Outputs
1 1 2 2 1 1 1 1 1

pwrAppNote: B&K Precision’s free pwrApp remote control application for the iPhone, iPad, and iPod touch is available to use with all 9170/9180 Series models that have a LAN interface card installed. For more information, visit http://www.bkprecision.com/pwrapp.
