BK9201

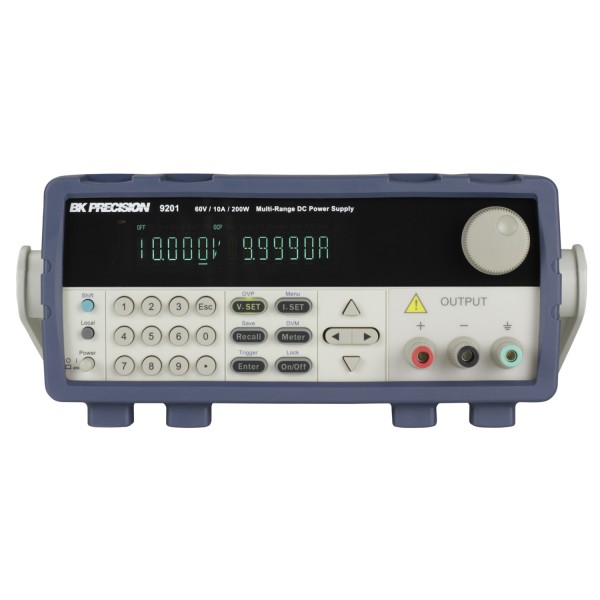

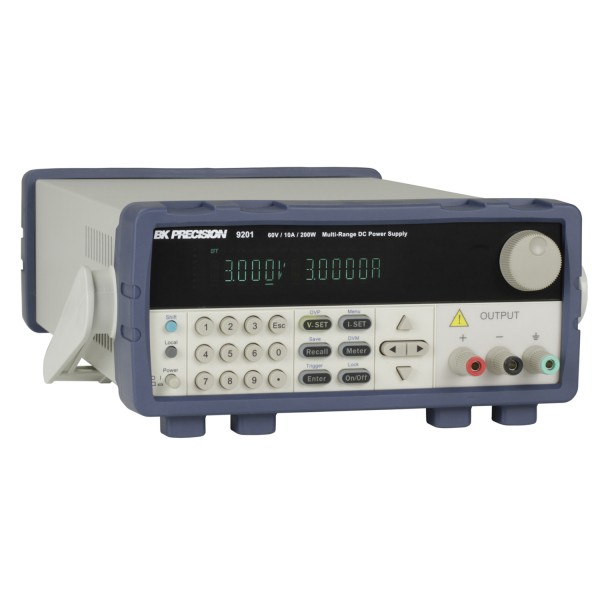

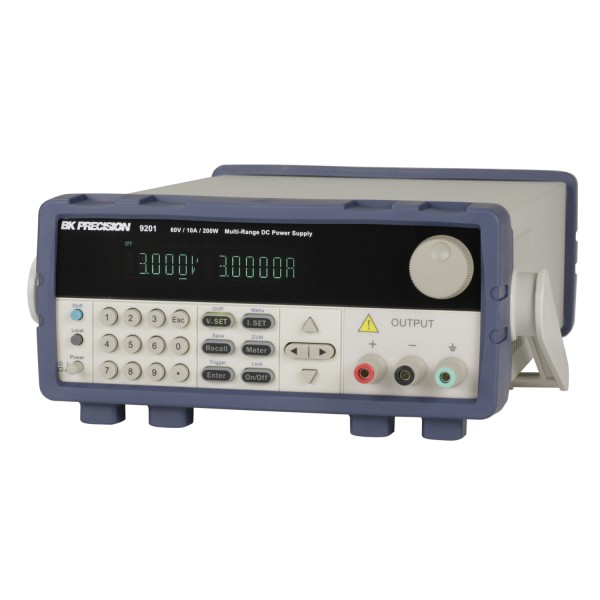

The B&K Precision 9201 200W Multi-Range Programmable 60V/10A DC Power Supply.

Description

The B&K Precision 9201 200W Multi-Range Programmable 60V/10A DC Power Supply.

The BK9201 can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, this multi-range power supply automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications,this power supply provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands.

Features

  • This is the UK spec 220VAC version with UK power lead
  • Multi-ranging operation
  • High programming and readback resolution of 1 mV/0.1 mA
  • Output timer function
  • List mode programming
  • Store and recall up to 72 instrument settings

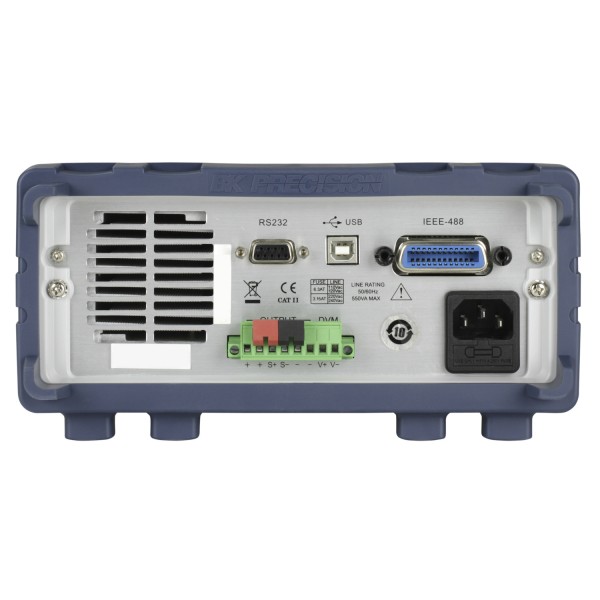

  • Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands for remote control
  • Remote sense
  • Overvoltage protection (OVP),overpower protection (OPP), over temperature protection (OTP), and key-lock function
  • NI-certified LabVIEW driver and soft panel for remote control, test sequence generation, and data logging available
  • Compact 19″ half-rack form factor allows for side-by-side rack mounting of two units





Additional information

Max. Power (W)

Max Current A

Max Voltage V

Interface

Ranging

AC or DC Output

Classification
