DAA288-240B 24VDC

DAA 288-240B Intelligent Message Display with text memory – 24VDC.

Product Documents

Description

Note: October 2020: this 24VDC model final new item is now SOLD  (factory production has now ended.)

Update: Sep 2023 – we have 3 used units tested with warranty and money-back guarantee.  Please email!

1 x 24VDC (branded KUHNKE) and 2 x230VAC (branded GMW)

Units have passed basic testing – display lights-up brightly, keys work, no obvious physical damage beyond general wear and tear, 4 hour running test completed.

Warranty of 3 months (if your Technician cannot get the item to work then you can return it to us – at your cost – and we will refund your payment minus our shipping costs).

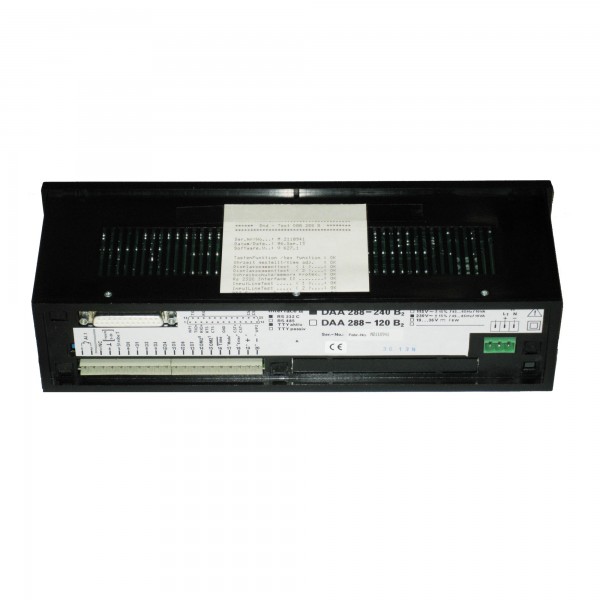

Without manufacturer’s box, with green connectors, with screw mounts, without printed manual.

Product Details:

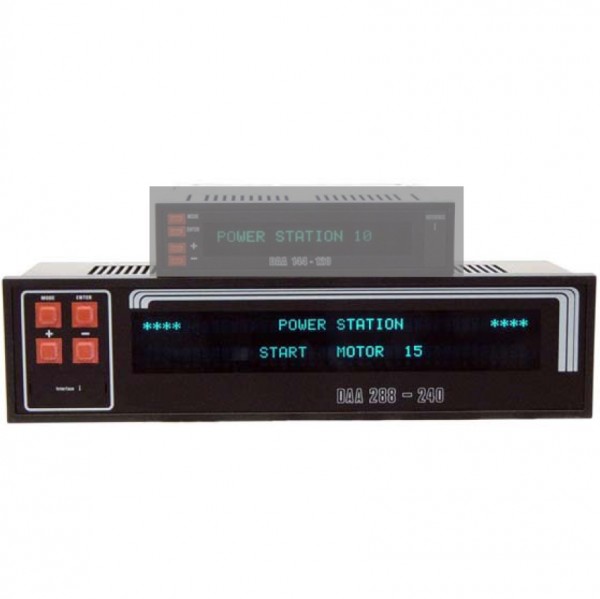

DAA 288-240B Intelligent Message Display with text memory.

Nominal 24VDC = 19…36VDC, peak 1.5A

  • 288mm x 72mm bezel size
  • Store up to 255 texts
  • Variable data insert
  • Multiple character sets
  • BCD, Binary or Serial text call
  • Built-in real-time clock
  • Alarm relay

New DAA units are no-longer manufactured and NOT in stock but were available in the following versions:

  • 230VAC
  • 115VAC
  • 24VDC
  • DAA 288-240A (without text memory)

Additional information

Dimensions

Text Memory

Power
