Overview

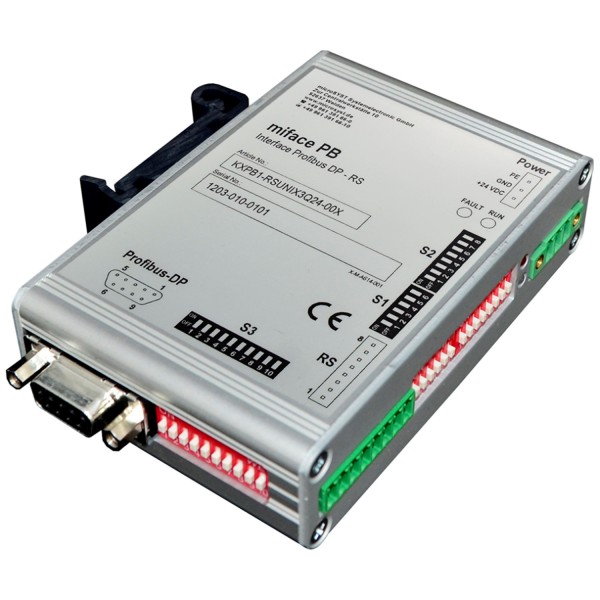

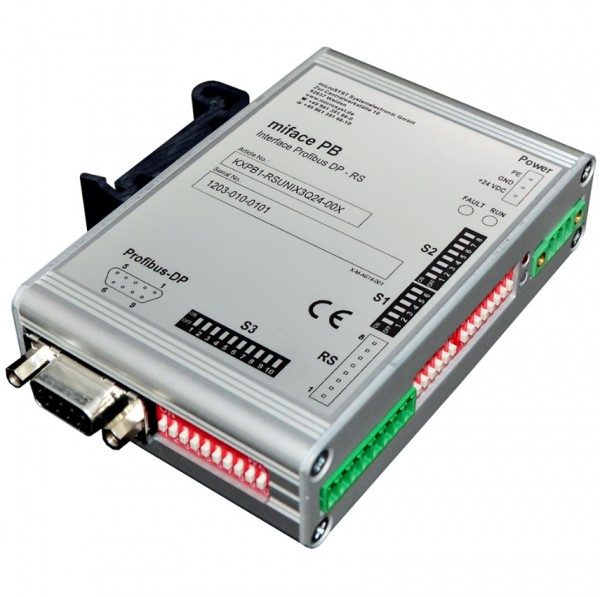

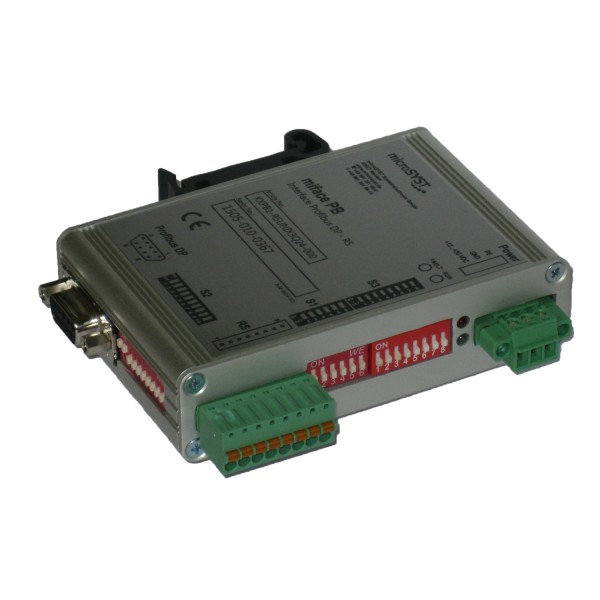

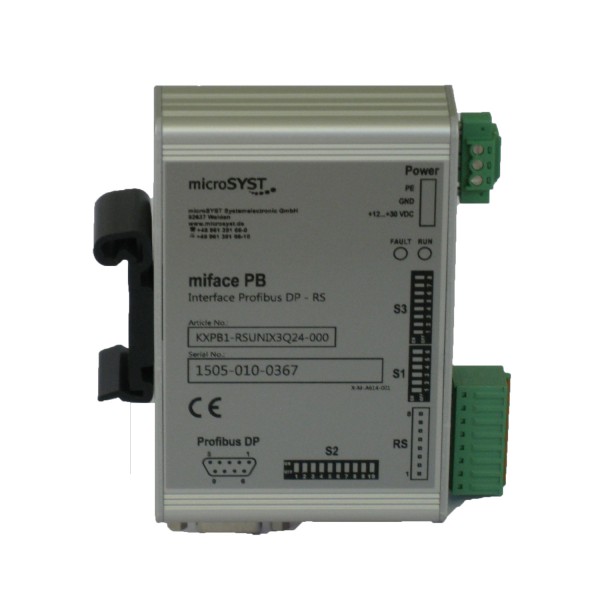

miface PB is a Universal Interface with Profibus-DP designed for industrial use.
Profibus-DP data is converted at an electrically isolated serial interface (RS232, RS485 or RS422).
The mechanical design is laid out for top-hat rail mounting. Freely accessible DIP switches are also included, e.g. for selecting the serial interface.
Diagnosis LEDs indicate current status.
Features
- LED status indicator
- Profibus to RS232, RS485 or RS422 serial
- housing for top-hat rail mounting
- excellent price-performance ratio
