Split Core Current Transformers

Split core Current Transformers for use with analogue panel meters and other applications.

Description

Split core Current Transformers for use with analogue panel meters and other applications.

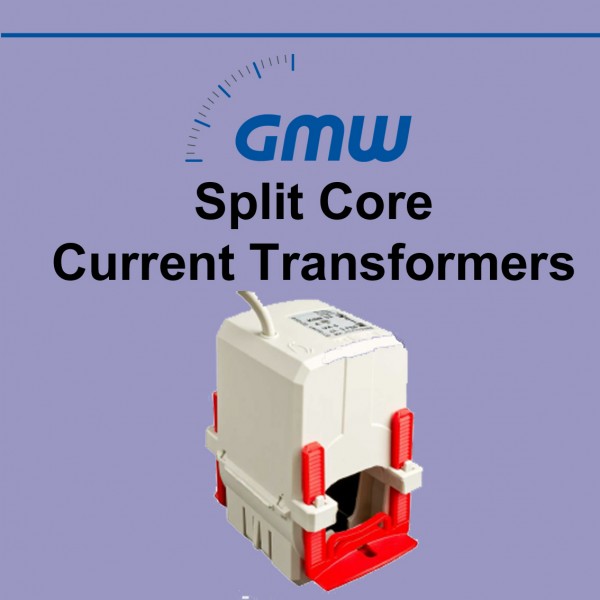

Split-core current transformer, type KBR

Models: KBR 18, KBR 32, KBR 44

Features / benefits:

  • Split-core current transformers are mainly used for an easy fitment into an already existing installation, without separating the primary conductor.
  • The compact split-core current transformers are especially developed for an easy handling and especially for an installation in areas, which are difficult to access.
  • Due to the „click”-system and the fixing-clasps even a one-hand mounting is possible.

Also available are the Split-core current transformer, type KBU

Models: KBU 23, KBU 58, KBU 812, KBU 816

Features / benefits

  • Perfect for subsequent assembly into already existing installations
  • Easy and safe mounting, due to hearable locking system
  • Deliverable with secondary current 5 A / 1 A
  • Deliverable also in accuracy class 0.5
  • Four different construction types
