Overview
The B&K Precision 9206 600W Multi-Range Programmable 150V/10A DC Power Supply.
This is the UK spec 220VAC version with UK power lead.
The BK9206 can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, this multi-range power supply automatically recalculate voltage and current limits for each setting,providing full output power in any Volt/Amp combination within the rated voltage and current limits.
For benchtop applications,this power supply provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB(USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands.
Features
- multi-ranging operation
- High programming and readback resolution of 1 mV/0.1 mA
- Output timer function
- List mode programming
- Store and recall up to 72 instrument settings

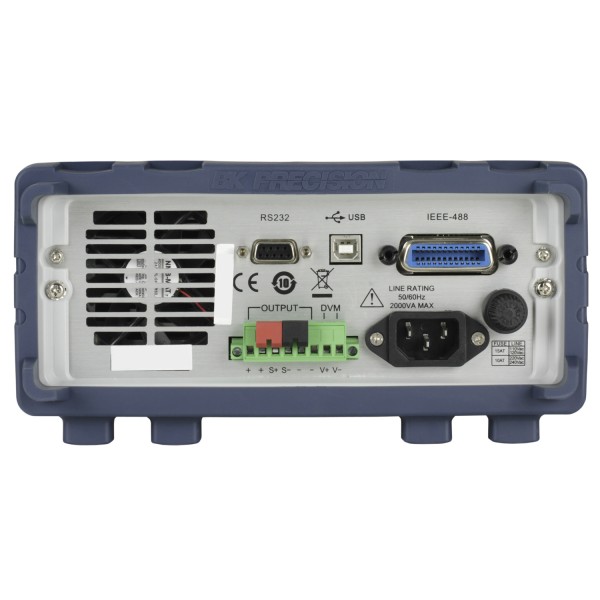

- Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands for remote control
- Remote sense
- Over voltage protection (OVP),overpower protection (OPP), over temperature protection (OTP), and key-lock function
- NI-certified LabVIEW driver and soft panel for remote control, test sequence generation, and datalogging available
- Compact 19″ half-rack form factor allows for side-by-side rack mounting of two units
