DAS 800
DAS 800 DAS800_front2 DAS800_Graphic1

Sefram DAS 800

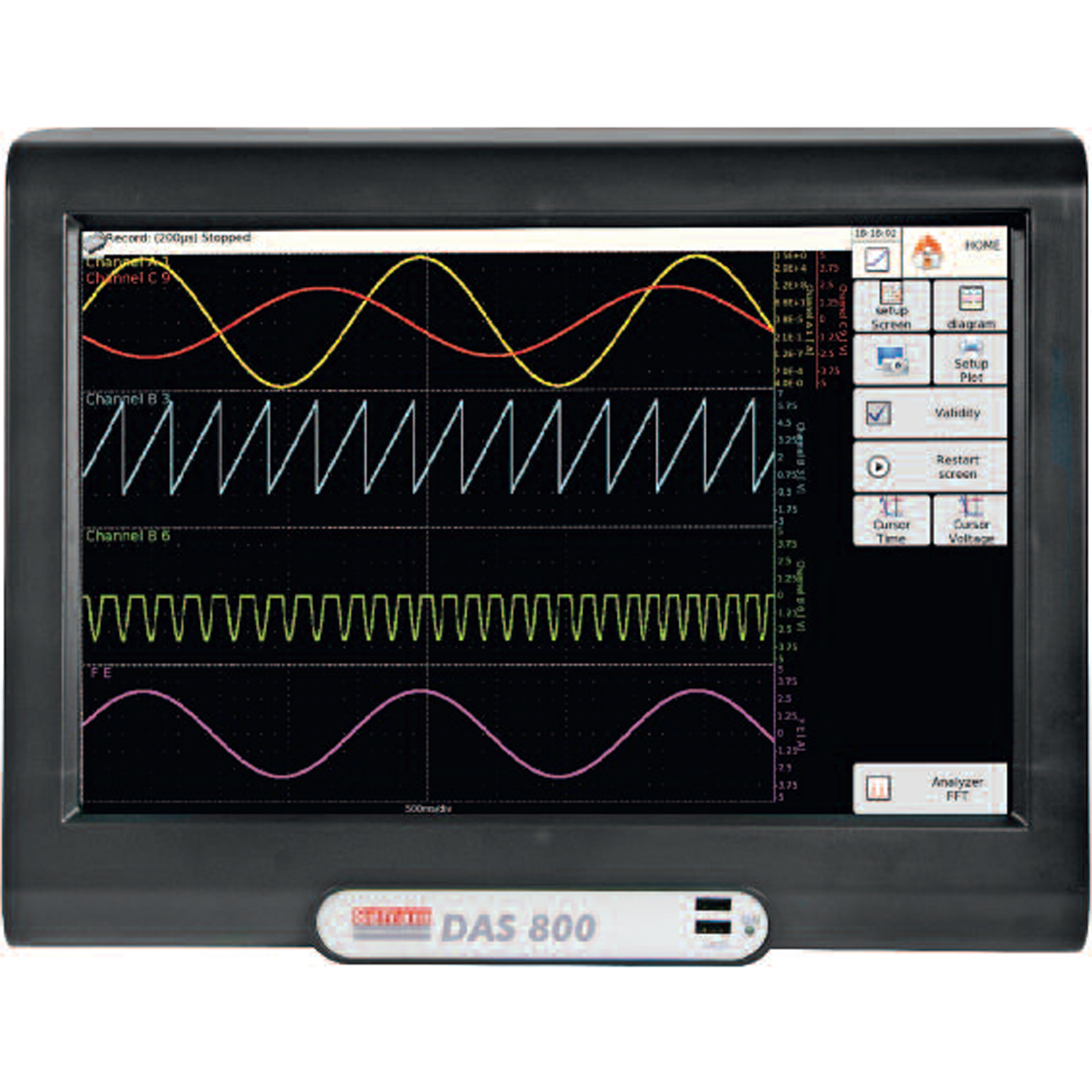

Sefram DAS 800 high speed data recorder with 6 channels, paperless and with panoramic touch screen.

LAN & USB (WiFi option)

This product has been discontinued. You may be interested in:

Sefram DAS 700


The Data Acquisition Solution DAS800 is a High-Speed Recorder that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V; 4-20 mA), etc.. With its 6 universal analog channels and 16 logical inputs you can record long term measurements with a sampling rate of 1MHz taking full use of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.

DAS800 combines autonomy, power and simplicity making it the right answer to your recording needs.

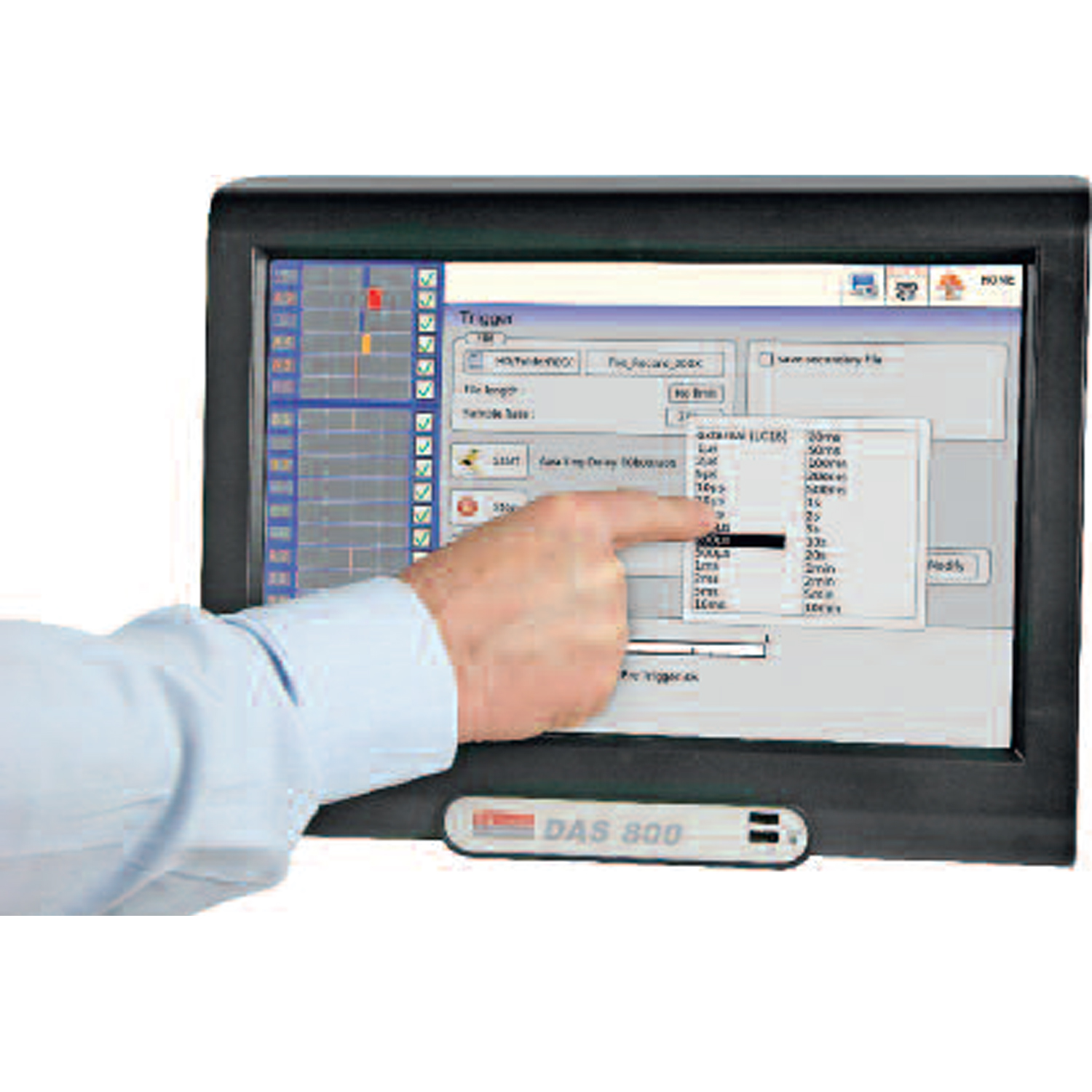

TFT panoramic LCD touch screen (15.4″)

Features of the DAS 800

  • 6 isolated analogue channels
  • 14 bit, 1 Ms/s, Bandwidth: 100kHz
  • DC, RMS AC+DC Voltage (+-500V)
  • Current input via external shunts (optional extras)
  • Frequency, Thermocouples
  • 16 logical channels
  • 128 Mword memory, segmentable
  • Internal hard disk : 500 Gb

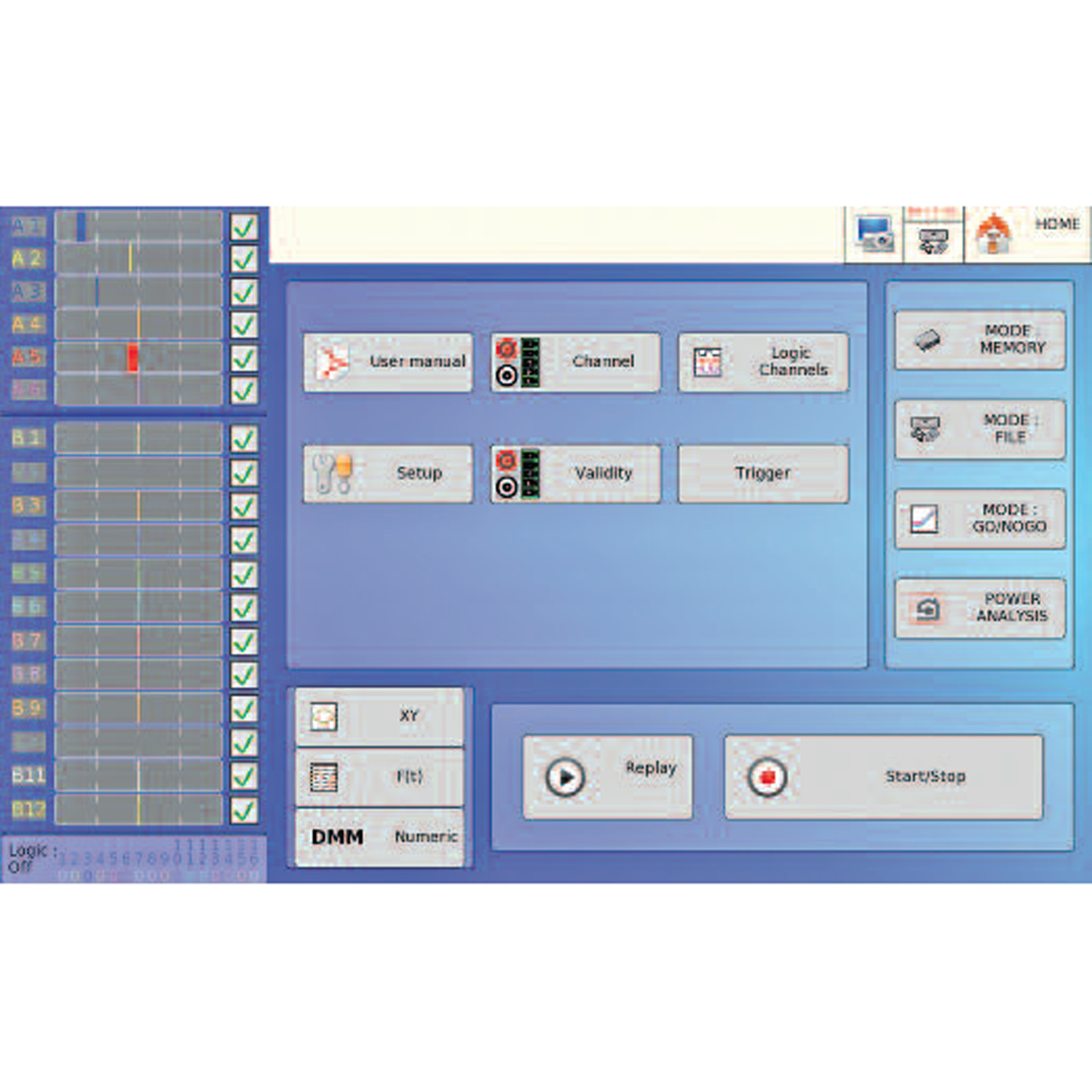

  • Intuitive man-machine interface
  • Power Analysis function (50Hz, 400Hz and 1kHz)
  • Interfaces : 6 x USB, Ethernet, VGA
  • Various measurement functions
  • Remote control
  • Supplied with licence free Sefram Viewer software for data transfer and analysis
  • Safety: 600V CAT III


  • WiFi interface
  • Internal battery
