Overview
With such a wide variation of requirements and large quantity of options, choosing a large display can be a daunting prospect. That’s where we can help.
Metrix Electronics has been supplying industrial LED displays from our base in Hampshire for over 15 years. So if you know your requirements but unsure which display is best for you then go no further! Just give us a call or send us an email sales@metrix-electronics.com and let us help.

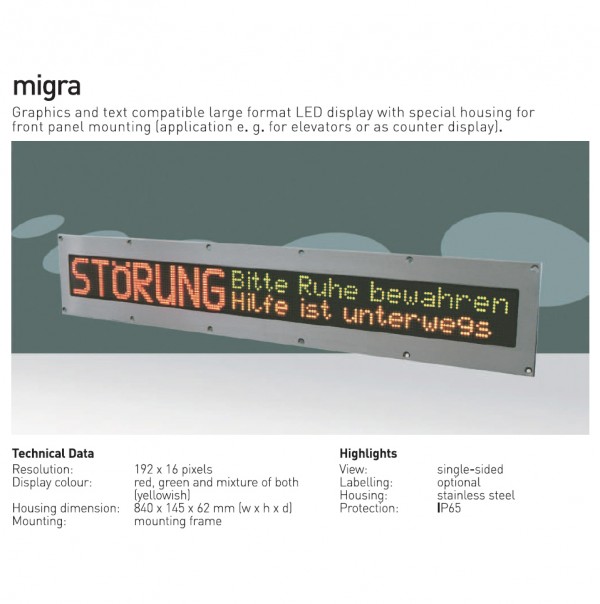

The migra is our best selling large format graphics compatible LED display designed and manufactured in Germany by microSYST GMBh but configured to meet your project requirements by our expert team in the UK. Email sales@metrix-electronics.com for friendly, knowledgeable advice.

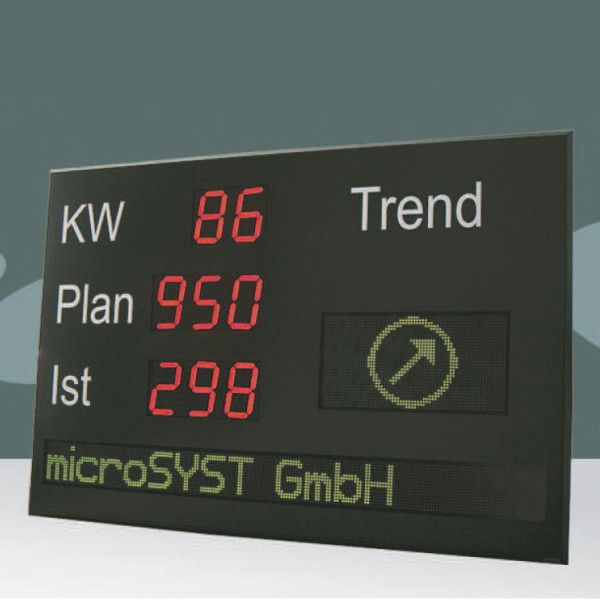

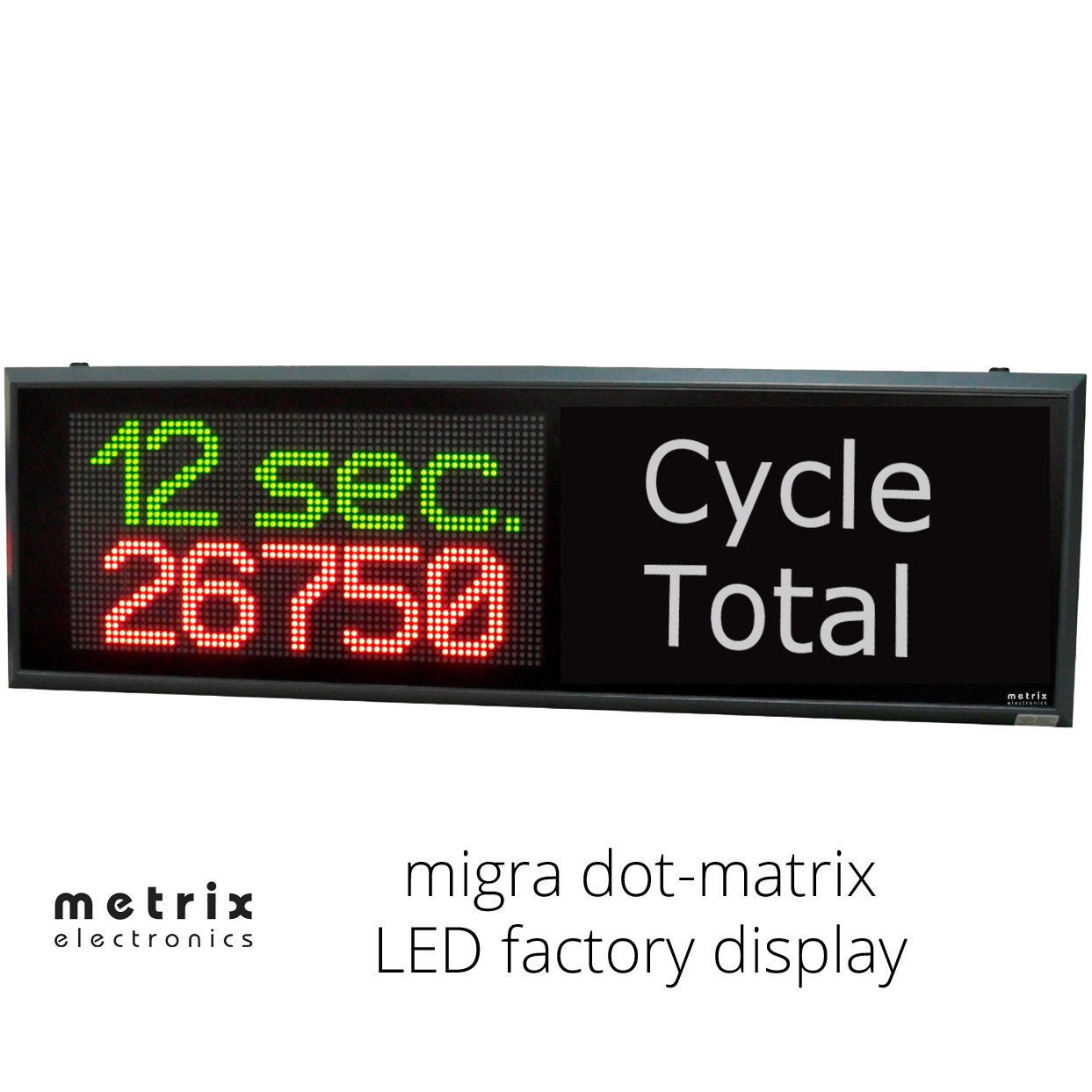

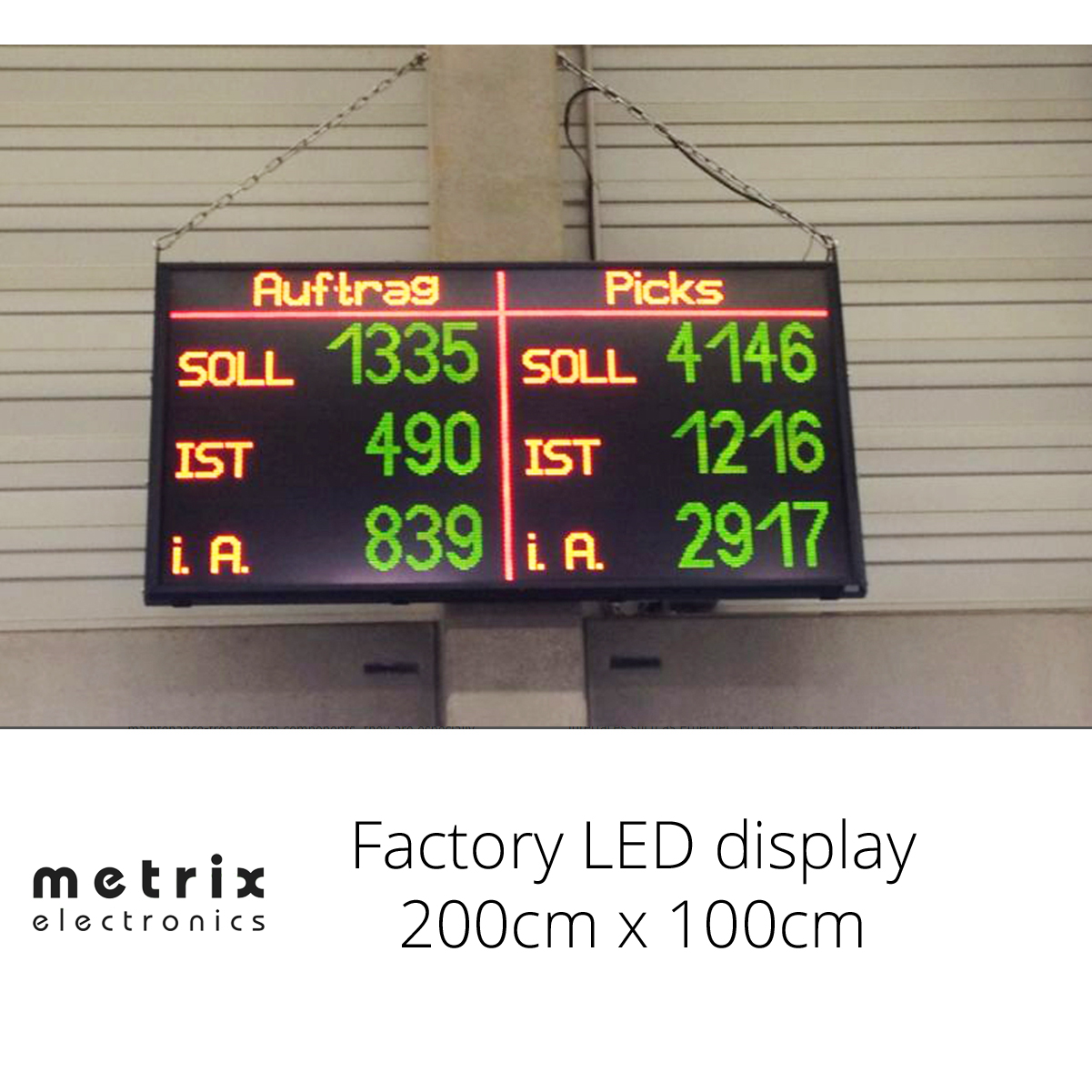

The Migra has a robust aluminium case with heavy duty hinges, connectors and mounts making these displays ideal for a tough, industrial environment. Users choose microSYST displays to ensure long life and low lifetime costs – especially in dusty, humid, hot or high EMC plants. Customer applications include factory LED displays for production performance reporting, steel works production signage and outdoor LED traffic information displays.
Case Studies
Metrix’s 1.2m tall bargraph display improves steel-making safety.
Dynamic colour change LED displays provide status alarms for steel presses
Complete Design Flexibility

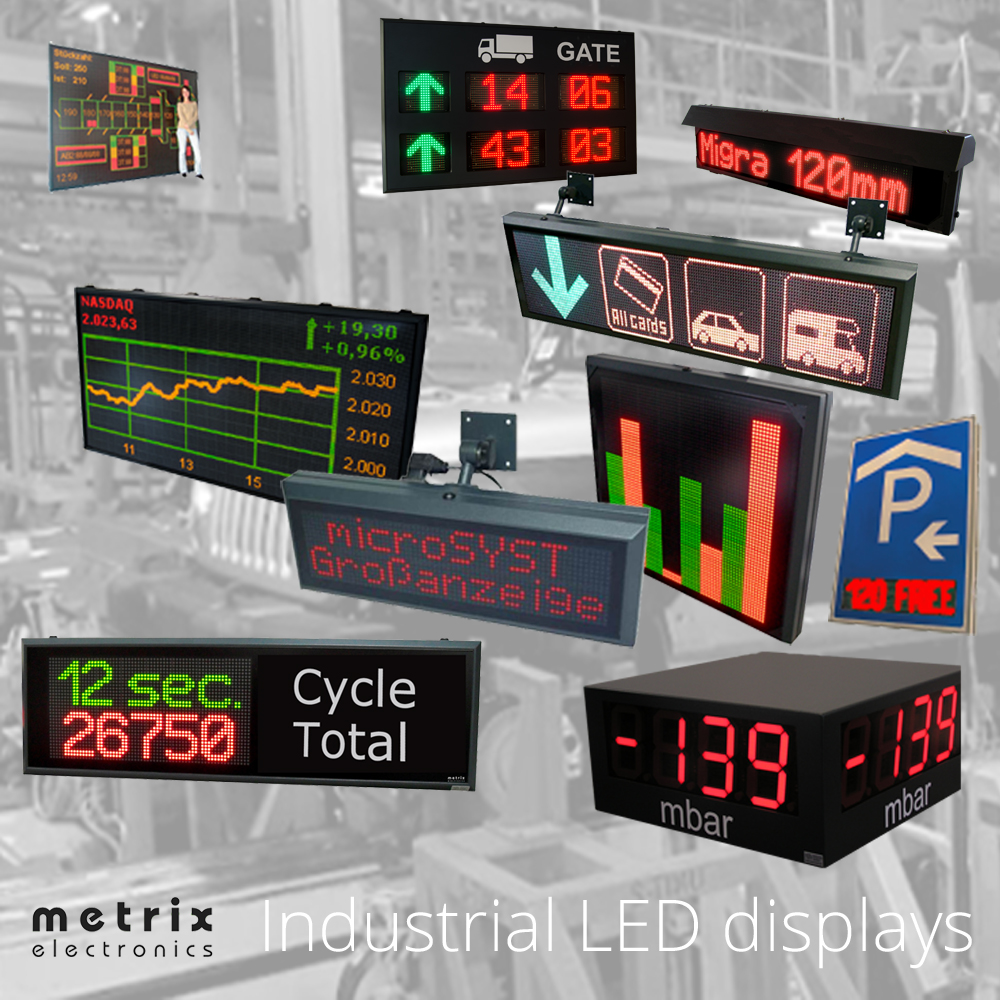

A modular design allows for many variants in different sizes, and with different resolutions of high visibility LED pixels in red or multi-colour. High luminosity with a broad dispersion angle assures good legibility.

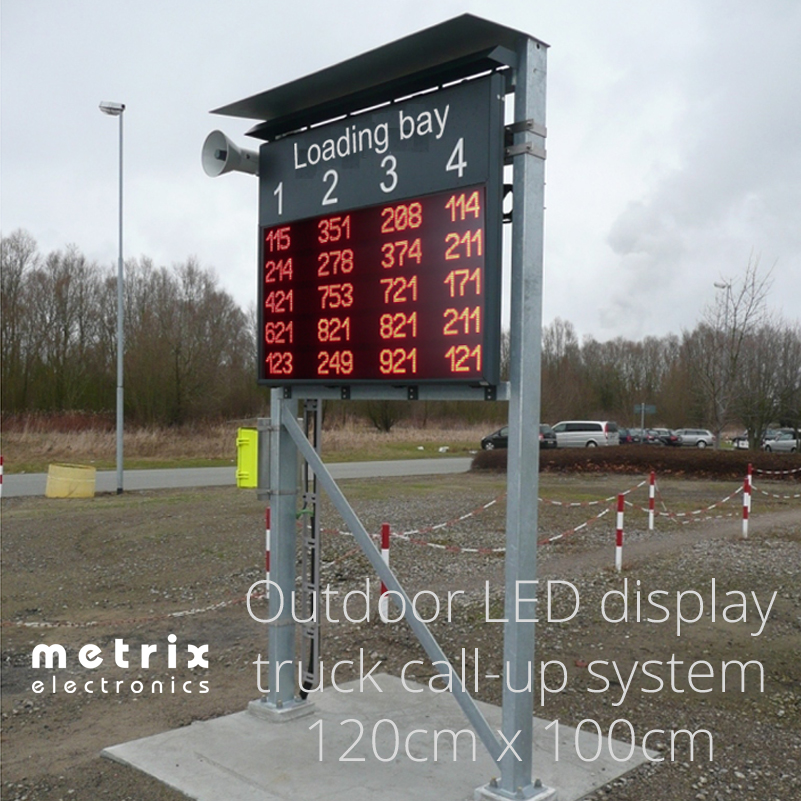

The Migra outdoor displays with high visibility in sunlight are available along with waterproof sealing and internal heater elements for extreme cold environments.
These industrial LED displays can be single or double-sided and mount by articulated arms, brackets or chains.
In addition to user-selectable fonts, the scope of functions also includes the display of variables, text storage, bar graph function, moving letters function, scrolling, blinking and automatic brightness adjustment, as well as optional inputs for analogue control, a counter function or binary-coded control.
Please refer to our Reading Distances documentation for further help.
Interfaces
As well as the standard control interfaces RS485 or RS232, users can select from fieldbus interfaces including Profibus-DP, Profinet I/O RT, Ethernet IP/TCP-IP, CANopen, DeviceNet or Modbus RTU. Control via WLAN is also available.
Projects, graphics or texts can be uploaded to the LED display via a dedicated configuration interface (RS232, RS485, USB or Ethernet).
For more information on COMMS interfaces please refer to the documentation.
Software
Comprehensive “MKS” PC configuration software is included at no additional cost.
Further Reading
Optional component parts for microSYST large format displays
Need Help?
As you can see a minefield of selectable options to choose from. Please refer to the datasheet for full details or give us a call. Our friendly knowledgeable staff can help.
