LK75 bar graph from GMW.

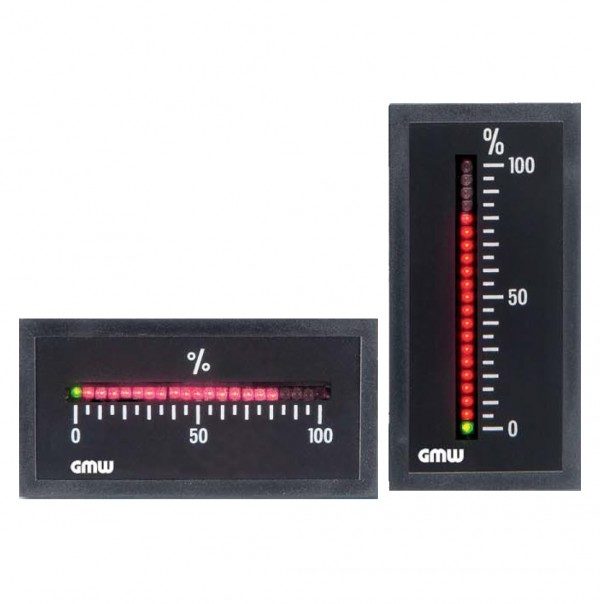

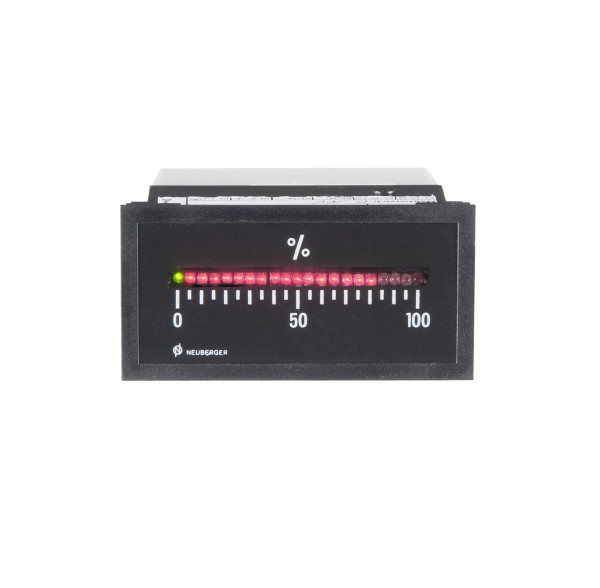

LK75 is a single input indicator with a 75mmx38mm bargraph display. The bargraph itself is 21 segment with single, round LED’s and is capable of installation in vertical or horizontal orientation. The single input can be DC voltage or DC current.
Features of the LK75
- Bar graph indicator 75mm x 38mm
- 21 Segment single LED bar graph indicator (round LEDs)
- Single input indicator
- Vertical or Horizontal installation
- 0-100% or fully customisable scale
- Inputs: DC Voltage, DC Current
