Overview

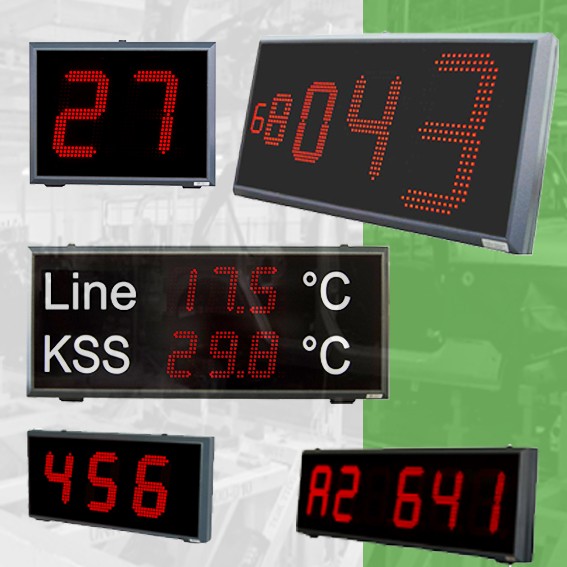

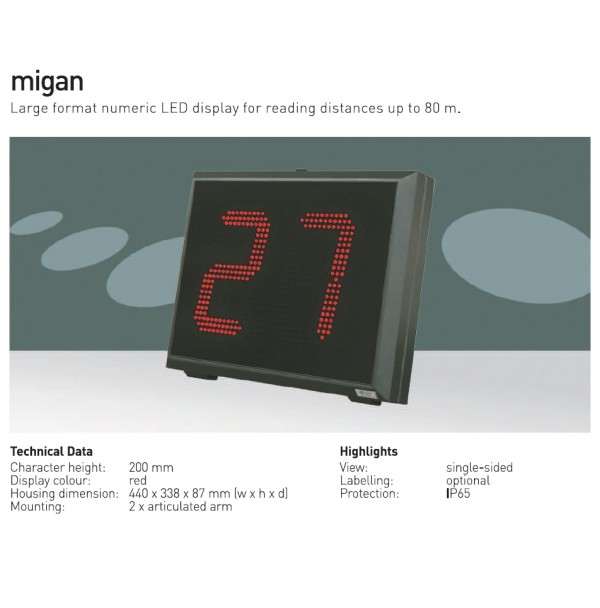

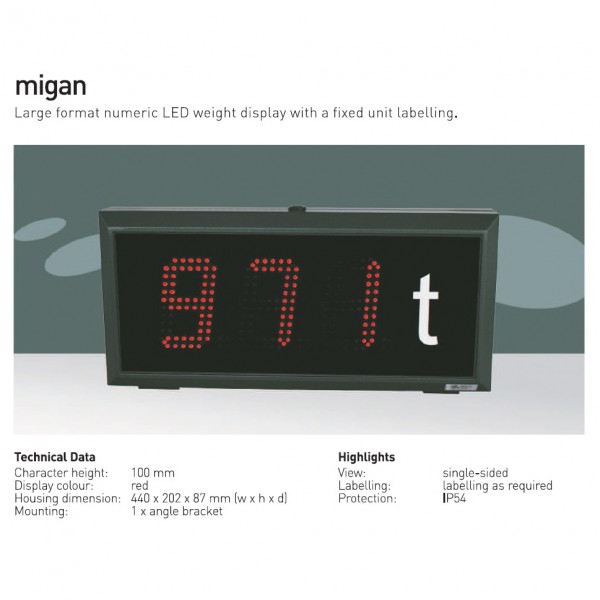

Introducing the migan indoor large format numeric LED display by Microsyst of Germany.
With powerful 7 segment LEDs they ensure high visibility making this display perfect for all indoor situations. High luminosity with a broad dispersion angle assures good legibility.
For visibility in sunlight choose from our range of outdoor numeric LED displays.
The Large Format LED Displays with their sturdy powder-coated aluminium housing are specially designed for permanent operation. Comprising of maintenance-free system components, the displays are especially made for the daily use under rough industrial conditions.
Modular

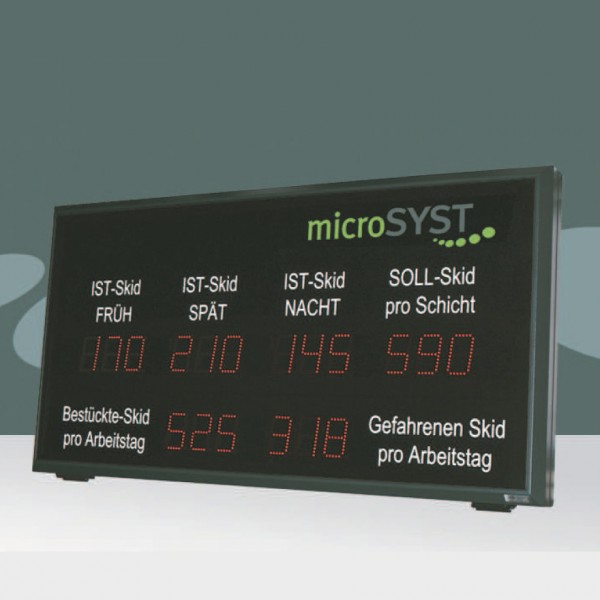

Due to the modular structure of the displays creating the display specific to your design is simple. It allows you to freely configure the line length and number of display lines, the combination with alphanumeric and numeric LED modules or a customised label.
The modular structure also enables a one-sided view or a view from many different sides with mounting possible by articulated arms, brackets or chains.
Interfaces
With regard to the system connection, there are the conventional interfaces Ethernet, WLAN, USB and also the serial interfaces PROFIBUS, PROFINET as well as additional fieldbuses and A/D converter, pulse counter, RTC, I/O, BCD or binary interfaces.
Additional Features of the Migan Indoor
- Display of Variables
- Automatic Brightness Adjustment
- Optional inputs for analogue control, a counter function or binary-coded control
Comprehensive “micon” PC configuration software is included at no additional cost.
