migan outdoor

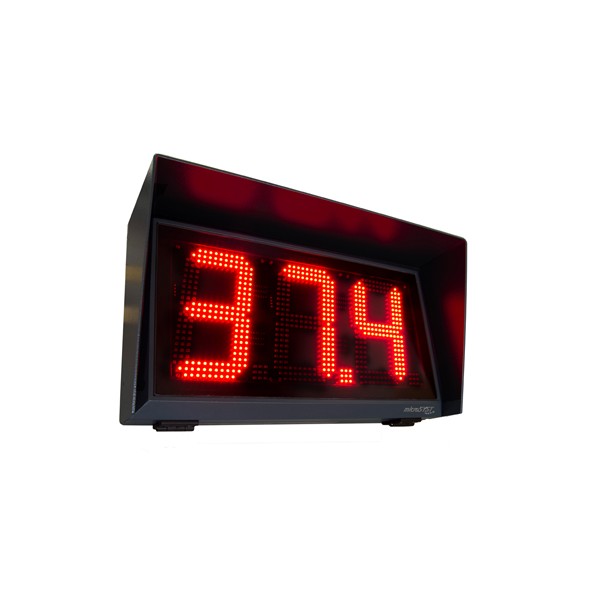

The migan outdoor large format numeric LED display by Microsyst of Germany.

Description

The migan outdoor large format numeric LED display by Microsyst of Germany.

The use of top quality red LEDs (green or amber optional) with an optimised layout allows for large reading angles of up to 110° horizontal and 50° vertical, together with high levels of illumination intensity and minimal current consumption. Luminosity is automatically adjusted to prevailing ambient brightness by means of an integrated controller.

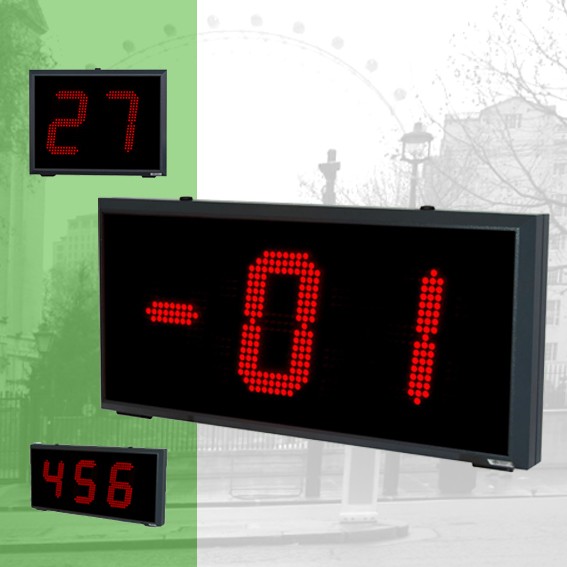

A modular design allows for many variants in different sizes, and with different digit heights.
High luminosity with a broad dispersion angle assures good legibility even in sunlight.

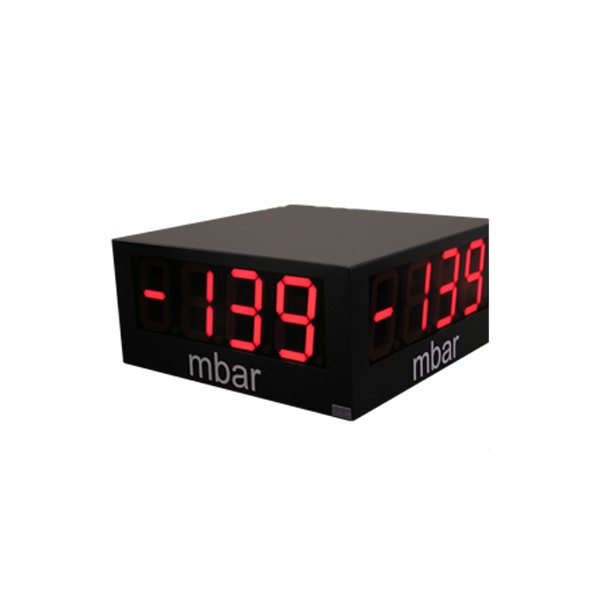

Migan displays can be single or double-sided and mount by articulated arms, brackets or chains.

The scope of functions also includes the display of variables as well as optional inputs for analogue control, a counter function or binary-coded control.

Standard interfaces such as RS485 or RS232 are available in addition to fieldbus interfaces including Profibus-DP, Profinet I/O RT, Ethernet IP/TCP-IP, CANopen, DeviceNet or Modbus RTU. Control via WLAN is also possible (optional).

Comprehensive “micon” PC configuration software is included at no additional cost.

Specifications of the migan outdoor

migan Outdoor Display

Display type 7 segment single LED
Display colour red, optional green
Brightness control automatically or manually adjustable
View single or multi-sided
Data input & presentation
Data input selectable: Ethernet TCP/IP, WLAN,
Profibus-DP, Profinet I/O RT, Modbus TCP, Modbus RTU, Ethernet IP, EtherCAT, CANopen, DeviceNet, InterBus, USB, Serial, A-D Converter, pulse input, binary, BCD
Lines 1 … n lines
Digits |
Displayable characters
General:

1 to 40 digits | 0…9 and A, b, c, d, E, F, G, H, I, J, L, n, o, P, q, r, S, t, u, y, -, ., (, )

A-D Converter: number of digits and display freely scalableBCD: 1 to 4 / 6 digits; optional 8 / 12 (parallel / multiplex) |  0…9, H, E, L, P, -, Blank

Pulse Counter: 1 to 9 digits | pulse input, pulses per unit of time

Character height |
reading distance
100 mm | 40 m
200 mm | 80 m
300 mm | 120 m
Housing & mounting
Housing industrial version, powder coated aluminium
Housing colour RAL 7016 (anthracite)
other colours available on request

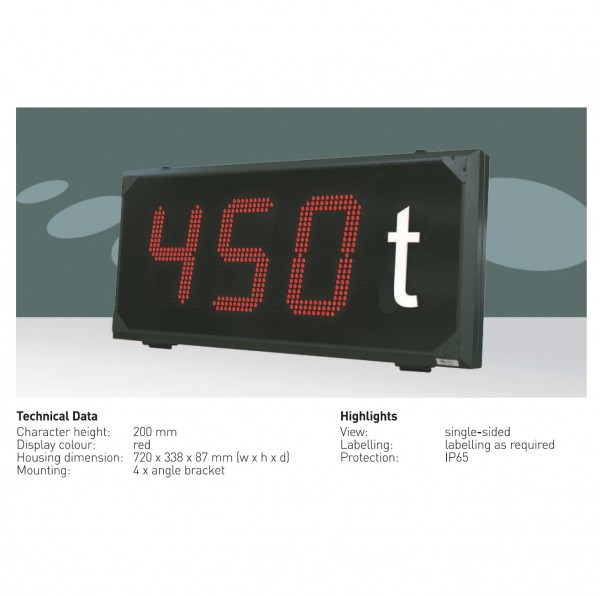

Mounting articulated arm, angle bracket, hanging with chain or mounting frame
Power supply
Operating voltage 230 VAC / 50 Hz, 110 VAC / 60 Hz or 24 VDC ±20 %
Power consumption 100 mm: approx. 4,8 W / digit
200 mm: approx. 12,9 W / digit
300 mm: approx. 19,3 W / digit
+ 5 W for control electronics
Environmental conditions
Protection IP65
Operating temperature standard: -20…+50 °C
optional with heating: -25…+50 °C
Storage temperature -25…+70 °C
