Three colour panel-mount 125mm bar length Bargraph with up to four inputs and four outputs

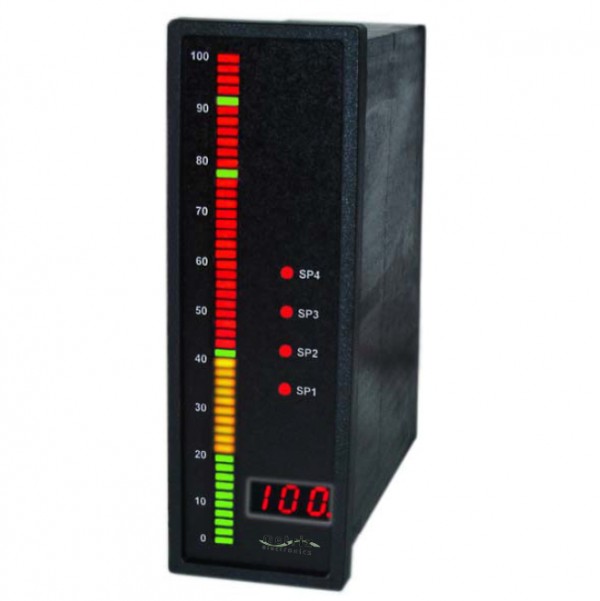

OCB500 three colour bargraph with up to four inputs and four outputs.

144 x 48mm
3 Digits



Digital Display

Max Relays

Bar length (mm)

Add to compare

Documentation & Downloads


OCB500 three colour bar graph with up to four inputs and four outputs.

Bargraph OCB500 with 50 Segments and 3 Digits Display is a programmable instrument designed for panel mount for connecting to analogue process signals.

One Signal Channel for DC Signals is standard.
This channel can also be set for True RMS, Pt-100, Potentiometer or Resistance measurements. Additional three DC Channels are optionally available.

The measurements in all channels are scalable by using coefficients.
The channels are scanned and displayed at the bargraph and at the digital display.
Arithmetic operation of four variables can be performed.

The bargraph lightstrip features programmable red, green and orange LEDs.


OTHER VERSIONS are available with different input options – see Related Products below.
