Overview

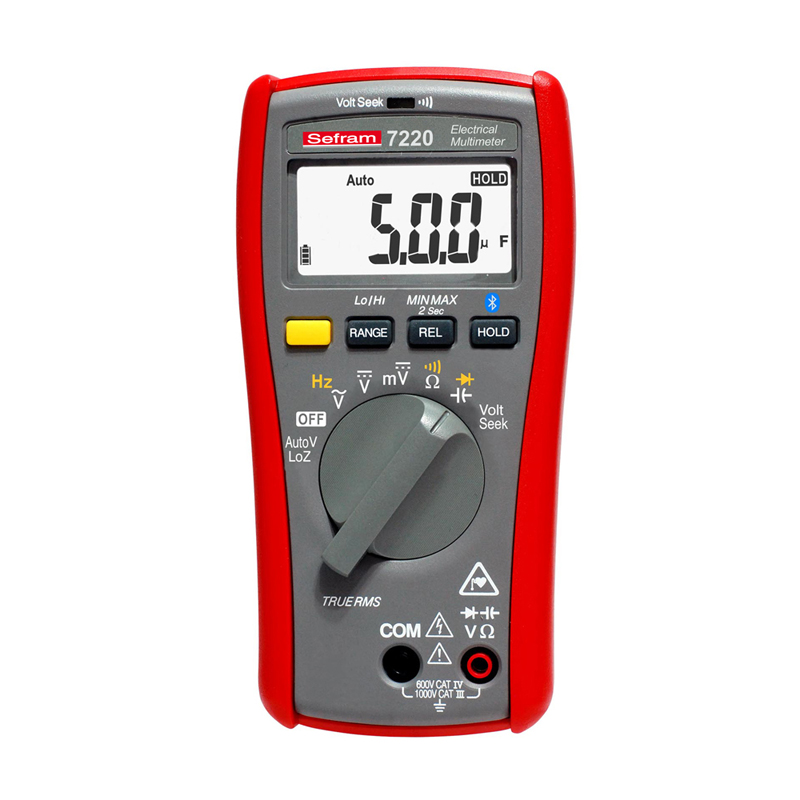

Sefram 7220: Introducing the latest multimeter from Sefram with bluetooth.
The multimeter SEFRAM 7220 has a simple and intuitive interface to access the various menus and advanced functions. All basic measurements (V, A Ω, …) have direct access.
With their Bluetooth interface and the SEFRAM Connect App dedicated to tablets and smartphones (Android or iOS), you can follow your measurements, download in real time, consult the memory, etc.
Features of the Sefram 7220
- Voltage measurement up to 1000V TRMS AC and 1000V DC
- Measurement of low impedance voltages (LoZ)
- Frequency and capacity measurement
- Resistance measurement up to 40 Mohms
- Continuity with buzzer
- Volt Sense function
- Bluetooth®
- Android App and iOS App: SEFRAM Connect (free)
- Safety: 600V CAT IV and 1000V CAT III
Download App Sefram Connect for Android® (Sefram Connect) or for iOS® (Sefram Connect)
Also available in the series is the Sefram 7221 and the Sefram 7223. If you have any questions regarding these models please contact us.
| 7220 | 7221 | 7223 | |
| V AC | ✓ | ✓ | ✓ |
| V DC | ✓ | ✓ | ✓ |
| mV DC | ✓ | ✓ | ✓ |
| Frequency | ✓ | ✓ | ✓ |
| Resistance | ✓ | ✓ | ✓ |
| Continuity | ✓ | ✓ | ✓ |
| Diode | ✓ | ✓ | ✓ |
| Capacitor | ✓ | ✓ | ✓ |
| Bluetooth® | ✓ | ✓ | ✓ |
| Volt Seek | ✓ | ✓ | ✓ |
| AutoV LoZ (Low Impedance) | ✓ | ✓ | |
| Data Logger | ✓ | ✓ | |
| HFR | ✓ | ✓ | |
| Backlight | ✓ | ✓ | |
| Bar Graph | ✓ | ✓ | |
| A AC | ✓ | ✓ | |
| A DC | ✓ | ✓ | |
| Temperature | ✓ | ||
| PV Voltage with SA163 (option) | ✓ |
