Sefram 7865HDT2

Sefram 7865HDT2

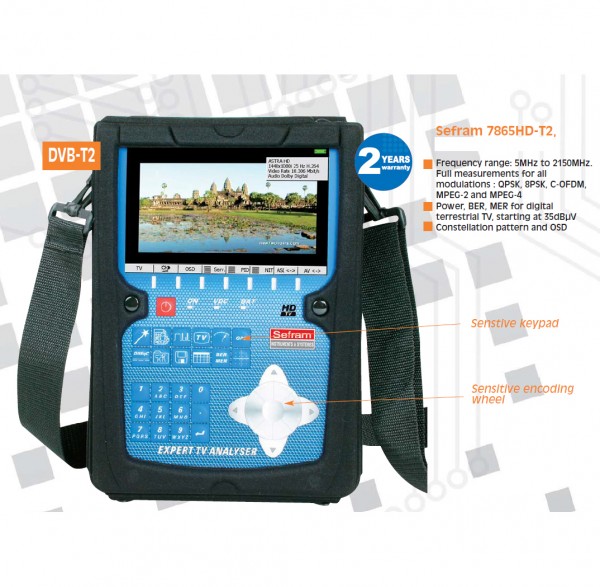

Sefram 7865HDT2 TV field strength meter for terrestrial and satellite.

This product has been discontinued We recommend the 7880 as a suitable replacement

Sefram 7880

Documentation & Downloads


Sefram 7865 HDT2 TV field strength meter for terrestrial and satellite.

Features of the Sefram 7865 HDT2

  • Panoramic 7 inch LCD colour screen
  • Display High Definition TV programs for terrestrial, cable and satellite
  • Display analogue TV programs
  • Full digital measurements DVB-T/H, DVB-T2, DVB-C (J.83A & J.83B), DVB-S and DVB-S2 (including MER versus carrier for DVB-T2)
  • Full measurements for MPEG-2 and MPEG-4
  • Decoding of all digital sounds: AAC, HE-AAC, Dolby Digital and Dolby Digital Plus
  • Ultra fast spectrum analysis and expert mode spectrum analysis
  • Satcheck mode with satellite recognition (NIT)
  • Real time echoes measurement with zoom
  • Link margin measurement in satellite and Noise Margin measurement in terrestrial
  • Constellation diagram with zoom
  • OSD TV, NIT, audio and video PID, impulse response
  • ASI TS input and output
  • Graphical display of measurements
  • DiSeqC and SatCR for satellite
  • Memorise and export/import data with USB memory stick
  • Battery with 1 hour charging time and 4 hours autonomy
  • Weight: 2,1kg
  • Rugged carrying case with carrying pouch for accessories
  • Water proof front panel with sensitive button
  • Optional PC software to create reports


Supplied with : mains adaptor (90-245V with UK plug), user’s manual, F/F or F/BNC adaptor

Optional accessories :

Wifi adaptor : P/N 978651000
Pouch for accessories : P/N 978656500
Kit TR7836 : kit with TR7836 software (CD-ROM) and USB cable
Car cigarette lighter power supply : P/N 978361000
BNC/TV adaptor : P/N 213200010
