Description

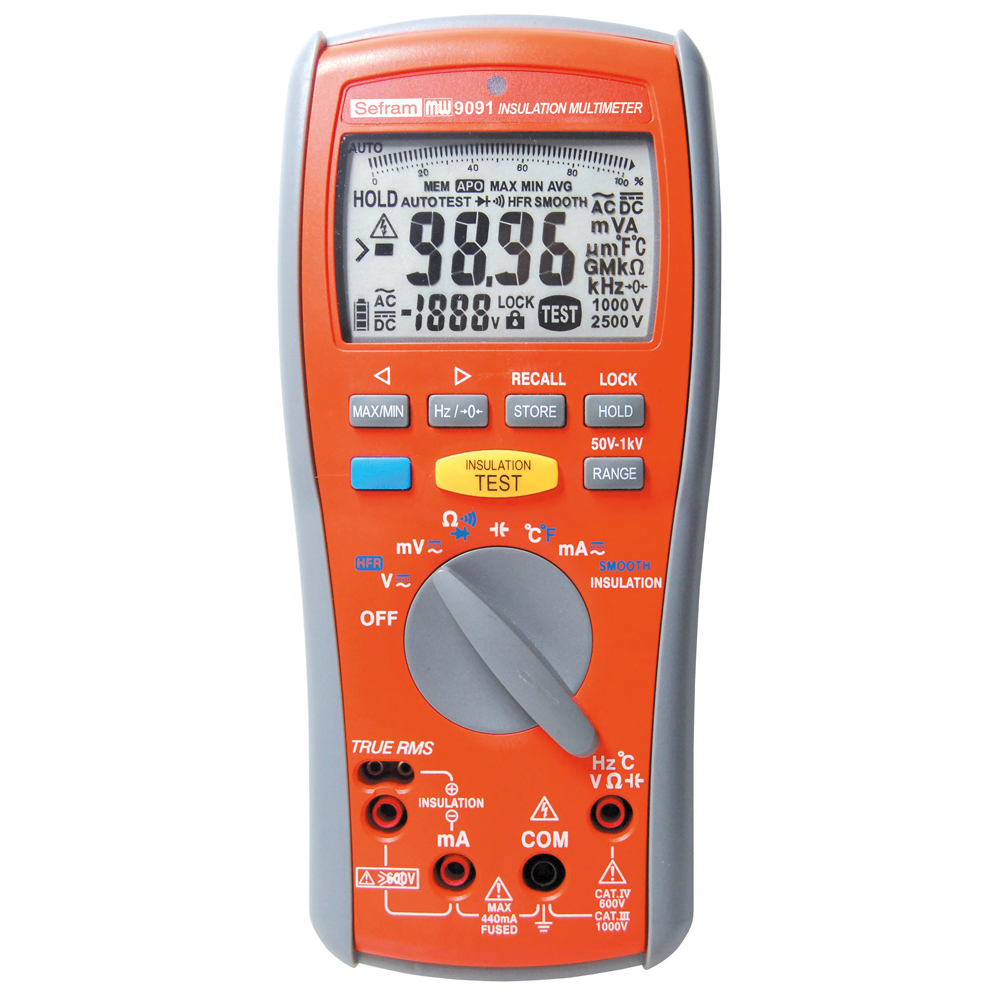

The Sefram MW9091 is a 50V to 1000V insulation tester and 1000V AC-DC DMM.
Features of the Sefram MW9091
- Insulation measurement at 50V, 100V, 250V, 500V, 1000V
- Insulation resistance : up to 22Gohms
- Voltage measurement up to 1000V TRMS AC and 1000V DC
- Current measurement AC and DC (400mA)
- Resistance measurement, continuity and diode test
- Frequency measurement
- Capacitance measurement
- Temperature measurement
- Compact housing with protective holster
- Backlit LCD display
- Functions: Min, Max, AVG, Relative and HOLD mode
- Memory: 5 x 100 memories
- Delivered with active probe
- Safety : 600V CAT IV and 1000V CAT III
