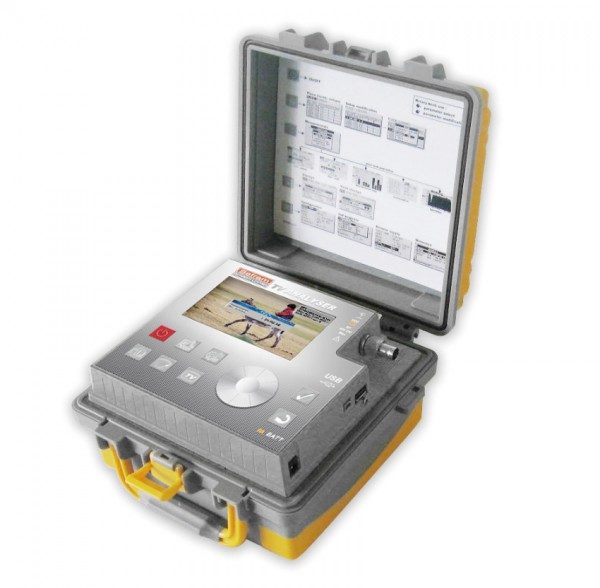

x -Sefram 7808
x -Sefram 7808 x -Sefram 7808

x -Sefram 7808

TV Meter for digital satellite TV
(DVB-S and DVB-S2), SD and HD TV program display (MPEG2 and MPEG4)

This product has been discontinued.

Documentation & Downloads



Click this link to the Sefram 7861HDT2 as a suitable alternative.

Features of the Sefram 7808:

  • TV Meter for Digital Satellite TV (DVB-S and DVB-S2) / 950MHz to 2150MHz
  • Display free to air programs SD and HD (MPEG2 and MPEG4)
  • Full digital measurements: BER, MER, PER
  • Checksat mode for fast alignment of dishes ( with NIT table)
  • SatCR mode, DISEqC 1.2
  • Display constellation pattern
  • Fast spectrum analysis
  • Remote supply: 5V/13V/18V/24V
  • 4.3″ LCD TFT coloured screen
  • Easy to use : sensitive wheel and direct access to functions
  • Shockproof housing for extensive field use
  • 3 hours autonomy and 1h charging time
  • Free and easy upgrade of internal software with a USB memory stick
  • USB interface
  • Light weight : 1,5 kg
