Metrix along with our partners Simex are pleased to announce the new MultiLog data recorder on sale from January 2018!

The process of controlling industrial processes is not based solely on control systems, but also on comprehensive recording and controlling of the course of such processes, as required for any subsequent verification of their correctness. The new MultiLog SRD-99X device is designed to record and display current values as well as to present technological parameters in the form of graphs. The device is equipped with up to eight universal inputs: temperature (RTD + TC) or analogue (mA + V), which enables connecting different types of sensors to one device, one pulse (digital) input for controlling the recording process; 2 electronic relays with max. load 24V AC (35V DC) 200 mA and one USB Host port (front or rear) for a USB flash memory. White or amber colour LCD backlight available. In addition, for outdoor type applications, an option with an extended operating temperature range is also available (-20°C ÷ +50°C).

Metrix Electronics has been working with Simex of Poland since 2008  – let us help you to a SRD-99 based solution for your data recording needs and make 2018 a “fully recorded” New Year!

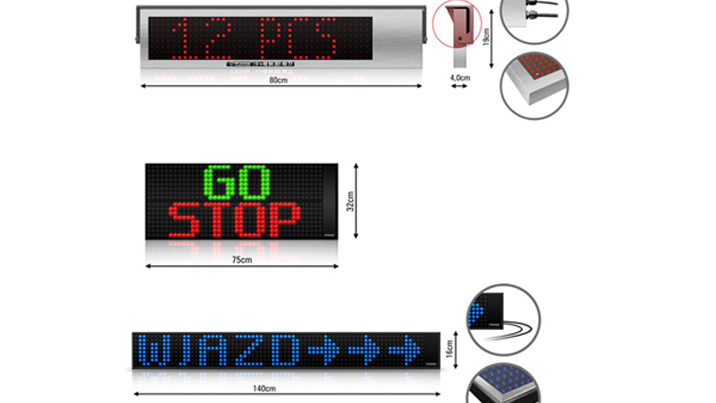

Metrix Electronics is very pleased to announce the listing of a new range of high quality, outdoor LED displays ideal for industrial use, from RGB Technology.

From our partners, RGB in Poland, comes the high quality UPWT range for Universal Industrial Text Display.

Boasting 5 different LED colour possibilities, power supply options 110-230VAC as well as 12VDC and 24VDC and LAN and serial port interfaces these really are the LED displays to satisfy all industrial text display needs.

Click here to view the full list of industrial displays from RGB Technologies available from Metrix Electronics.

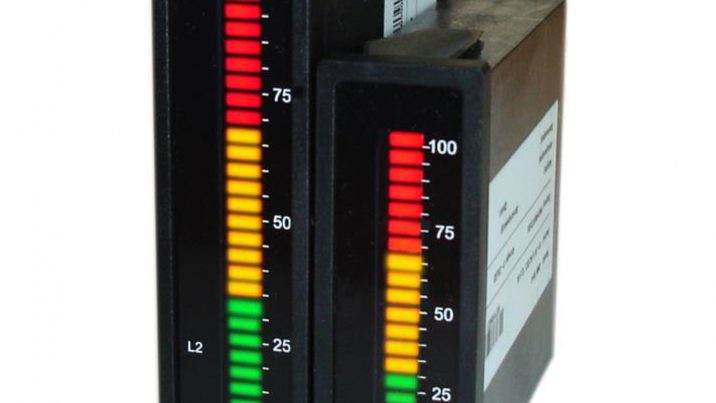

Metrix with our partner Orbit Controls are very pleased to announce the latest in their line of programmable bargraphs.

After much success with the OCB201 and OCB301 programmable bargraphs for process signals, Orbit Controls are now introducing the same winning bargraph with PT-100 temperature sensor.

OCB201 and OCB301 are programmable bargraphs with 20 or 30 Bar Segments.

The OCB-201-PT and OCB301-PT versions are designed for panel mount for connection to Pt-100 temperature sensor with two or four terminals and permit visualizing of the temperature process. The three colours can be free distributed across the entire bar length. The intensity of the bar can be set between 20% and 100% to permit visibility under different lighting conditions.

The temperature range will be factory calibrated in accordance with the customer requirement and can be selected from -20ºC to +850ºC.

The parameters are entered by using three keys behind the front lens. The menu contains assigning of the input signal to the bar length, selection of the bar colours and settings of two Set Point Relays.

OCB301-Pt permits setting of two Set Points SP1 and SP2 with Relays 5A-230VAC, SPST.

The Bargraphs are supplied from 18-36VDC and can be used for horizontal or vertical mount. Also the reading direction from left to right or down to up can be selected.

Specification Example

(Please contact us to request a quote specific to your requirements or request a quote via our website product listing)

OCB301 Programmable Bargraph

Dimensions: 96 x 24 mm
IP Rating: IP40
Bar length (mm): 75
Format:  Horizontal
Input:  Pt100 2-wire
Scale markings:  0…100
Caption:  °C
Relays:  2 Set Point Relays
Auxiliary Power Supply:  18…30V AC/DC
