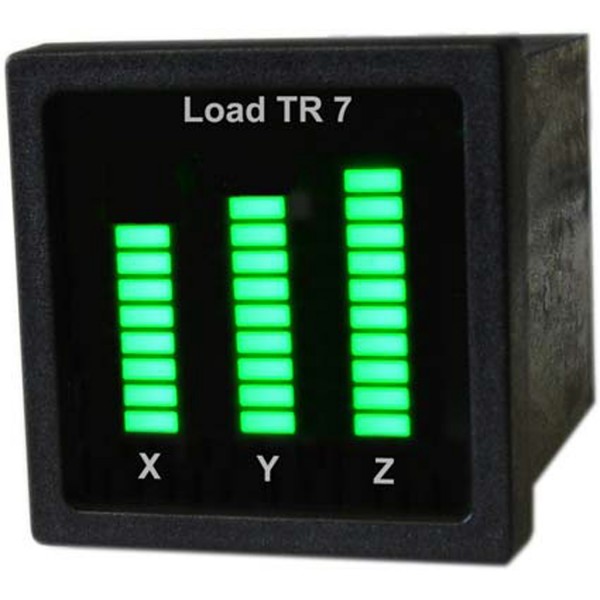

The OCB30 with three green or red bars has 10 segments per bar and is designed for monitoring of three independent signals 0-10V.

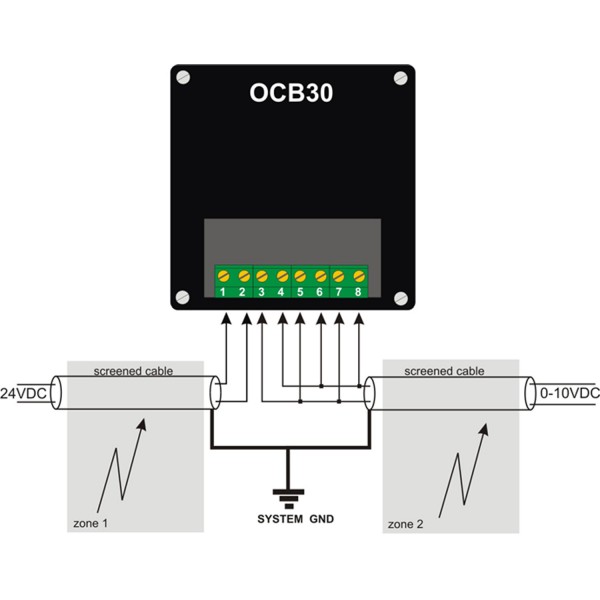

The bargraph is supplied from 24VDC or 24VAC and is enclosed in a DIN cabinet 48 x 48mm. The depth behind the panel is 60mm. The three signal inputs and the supply voltage are connected via screw terminals.
Features of the OCB30
- Three Signal Channels 0-10VDC
- Three red or green Bars, Each with 10 Segments
- Supply 24VDC or AC
- Screw Terminals
- DIN cabinet 48 x 48 x 60mm
Metrix Electronics offers a full range of bargraphs and meters from our partners Orbit Controls.
