Dinalog A1400 Bar graph

Bar graph indicator/controller 144mm x 36mm

Documentation and Downloads

Description

The Dinalog A1400 from GMW is a bar graph packed with features which makes it ideal for any process system.

With an optional 3-digit LED display (vertical orientation only) you can have both a bar graph readout and numeric display to monitor your system effectively.

Features of the Dinalog A1400 Bar graph

  • 71 Segment dual LED bar graph indicator
  • Single input controller with 2 or 4 relay outputs or dual input indicator without relays

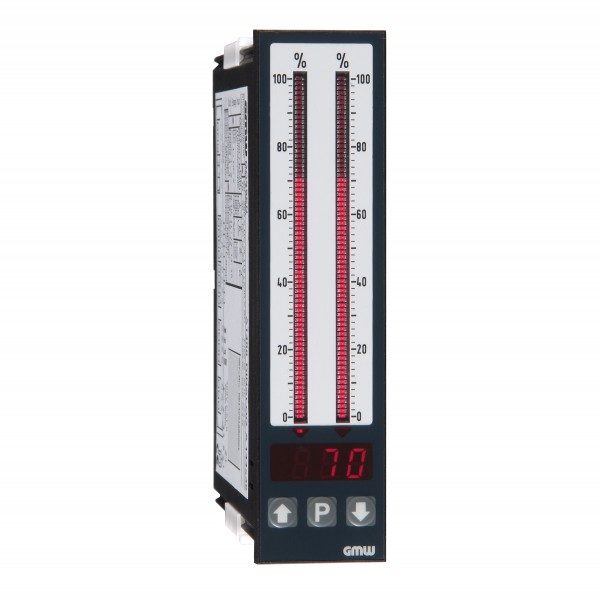

  • Vertical installation with optional 3 digit LED display (8mm digits)

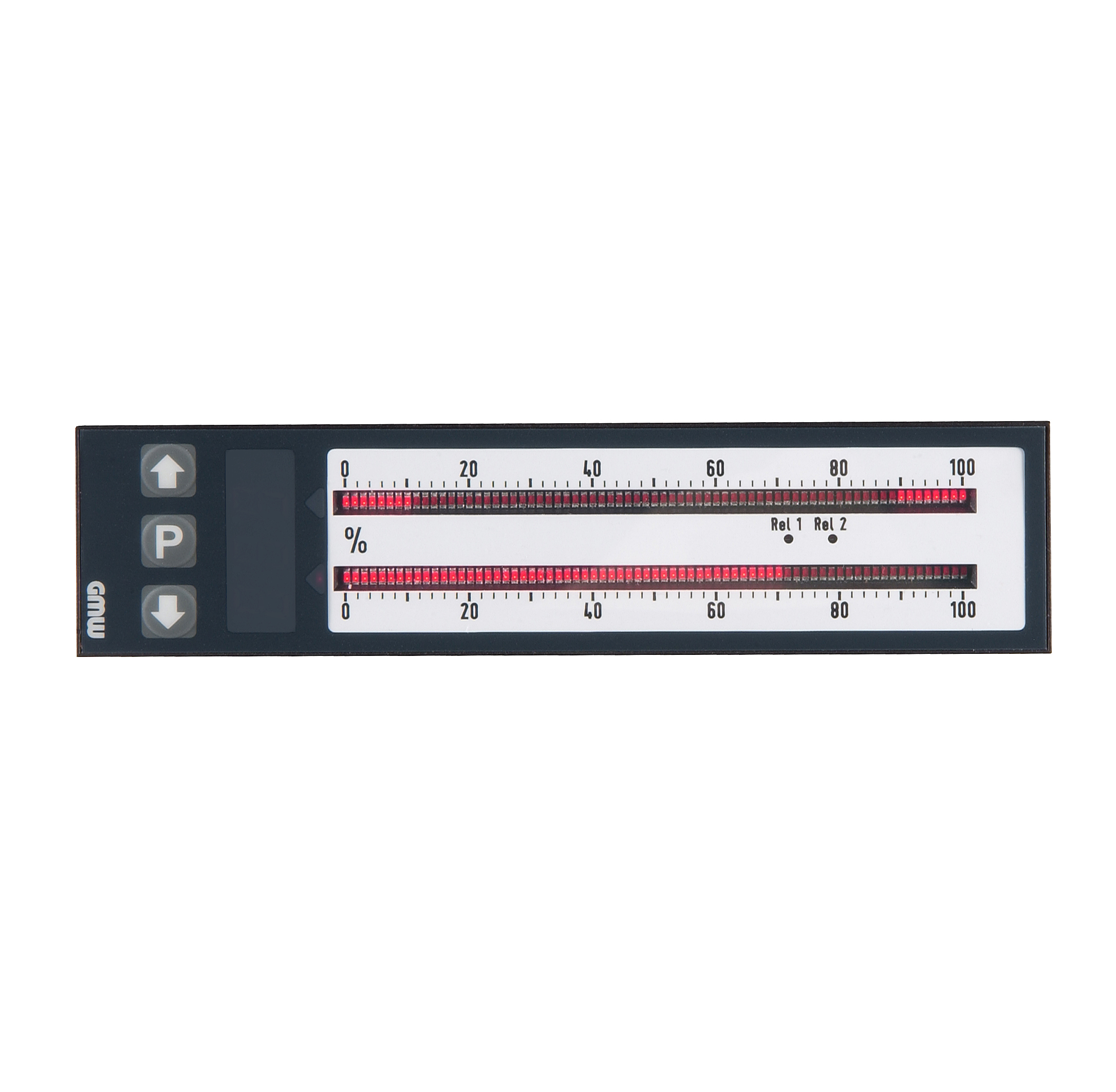

  • Horizontal installation without 3 digit display
  • 0-100% or fully customisable scale
  • Inputs: DC Voltage, DC Current, AC Voltage, AC Current, Temperature, Resistance

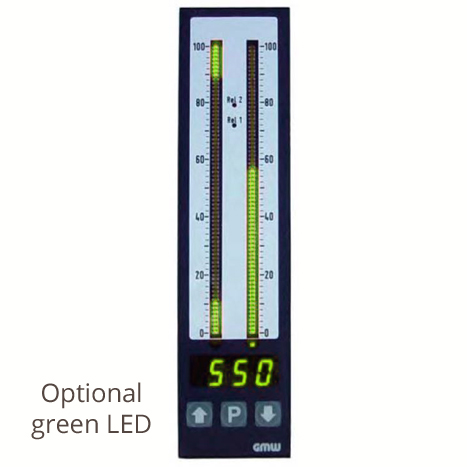

  • Optional green LED (red as standard)

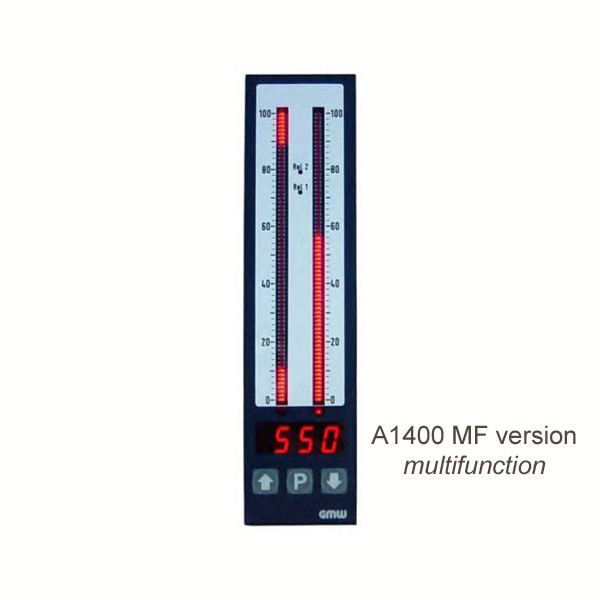

Also available is the A1400MF multifunctional version with in-built choice of inputs, included relays, wide-range power supply and fixed 0-100% scale.

We offer a full range of bargraphs from GMW, all packed with features.



Additional information

Dimensions

Channels

,

Digital Display

Max Relays

Communications

IP Rating

Bar length (mm)
